SURESHOT SYRINGE PUMPS

Mechanical and programmable syringe pumps for OEM life-science, diagnostic, and analytical systems.

HIGH-PRECISION LIQUID HANDLING, BUILT TO LAST

The SureShot syringe pumps deliver high-precision liquid handling for OEM life-science, diagnostic, and analytical systems. Engineered for reliability, low maintenance, and long service life, each model is available with a full ecosystem of compatible syringes and multi-port valves.

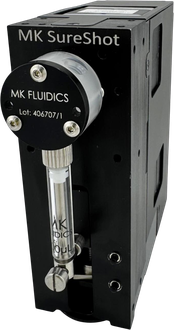

mk-sureshot-3-syringe-pump

SureShot 3

  • Standard syringe sizes from 50µL to 12.5mL
  • Dispensing accuracy down to sub-microliter volumes
  • 3-14 port valve options
  • Closed-loop control via NEMA 17 stepper motors and quadrature encoders
  • TruePort valve position system with completely custom valve positioning within 1°
  • Overall height 5.00 in, width 1.75 in, depth 4.20 in

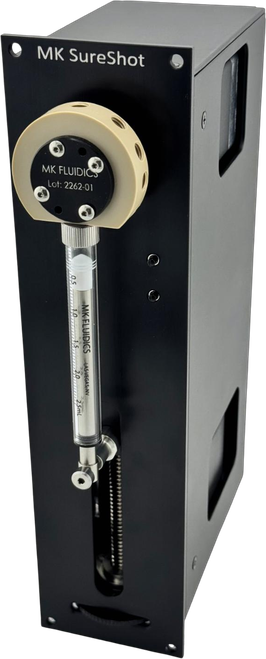

mk-sureshot-6-syringe-pump

SureShot 6

  • Standard syringe sizes from 50µL to 50mL
  • Dispensing accuracy down to sub-microliter volumes
  • 3-14 port valve options
  • Closed-loop control via NEMA 23 stepper motors and quadrature encoders
  • TruePort valve position system with completely custom valve positioning within 1°
  • Overall height 9.99 in, width 2.56 in, depth 4.57 in

MACHINED FOR RIGIDITY AND MAINTENANCE-FREE OPERATION

Each pump's frame is machined in a single operation on a 5-axis mill out of 6061 billet aluminum and anodized to protect it. This single piece construction is highly rigid and prevents inaccuracy due to flexing of the frame. The drivetrain is comprised of a precision lead screw and an anti-backlash nut to ensure accuracy and precision.

This robust construction eliminates the need for lubrication and maintenance for the life of the pump. The anti-backlash nut also ensures that syringe movements are precise with incredible repeatability. The precision linear rail ensures that no lash is introduced into the system while alternating between aspiration and dispense actions.

A mechanical-only version, without a PCB, is also available, which provides significant cost savings and gives customers unparalleled levels of control in their integration efforts.

DOWNLOAD THE BROCHURES

Full specifications, syringe and valve options, and dimensional drawings for both models.
